Formulation and Evaluation of Herbal Candy Based on Indian Medicinal Plants for Cancer Therapy via Immunomodulation

Madhuri Patil (Mohite)¹, Abhay Raizaday², Varsha Raut³

School of pharmacy, Suresh Gyan Vihar University Jaipur, Rajasthan

Gourishankar Institute of Pharmaceutical Education and Research, Limb, Satara. Maharashtra

ABSTRACT

Cancer is a hyperproliferative disorder which includes transformation, dysregulation of apoptosis, proliferation, invasion, angiogenesis and metastasis. Immunotherapy has provided new hope for cancer patients. Shankhpushpi, Brahmi, Nagarmotha, Chirata, Spirulina are used in Indian system of medicine for treating various health problems. All these medicinal plants used in the formulation have reported activity against different types of cancers. The present study deals with preparation of herbal candy as immune booster for cancer therapy by standard method. Candy is a fast and effective delivery system for medications. Hard boiled sugar candy was developed by using powder of crude drug. The phytochemical analysis of prepared herbal candy showed the presence of Carbohydrates, Alkaloids, Flavonoids, Terpenoids and Polyphenol. The results of physio-chemical and sensory characteristics of herbal candy revealed that candy prepared using sugar shows best consistency, mouldability, thread forming ability, brittleness along with desirable taste and colour at the temperature 145ºC.

Keywords: Cancer, Spirulina, candy, Chirata, Brahmi.

INTRODUCTION

Cancer is the major public health problems and one of the leading causes of death in the world ⁽¹⁾. Globally, the number of cancer deaths is projected to increase from 7.1 million in 2002 to 11.5 million in 2030⁽²⁾. There are several chemotherapeutic cytotoxic and immunomodulating agents are available to treat different types of cancer but these drugs are expensive, associated with serious side effects and morbidity. Still the research is continuing for an ideal treatment that has fewer side effects and is cost effective. Herbs play an important role in treating different types of disorders ⁽³⁾. Today only a limited number of plant products are being used to treat cancer. Indian medicinal plants and their constituent mediate their effect by modulating identified therapeutic targets. However medicinal plants require rediscovery in light of current knowledge of modern medicine.  Shankhpushpi, Brahmi, Nagarmotha, Chirata, Spirulina are used in Indian system of medicine in various health problems and individually shows anticancer property.

The term ‘tonic’ is derived from the Greek word for tension: (tones). The designation ‘rob rant’ is often used synonymously and is derived from Latin ‘Rob rare’, which means ‘strengthen’ ⁽⁴⁾. The definition of tonic and its desired effects found in medical dictionaries and other resources very remarkably ⁽⁵⁾. The tonic affects different organ systems and have different points of action ⁽⁶⁾.  Tonic perform various functions such as it fights infection, Strengthens tissue against micro-organism. Tonic Increases T-cell production and protects T-helper cells. It Stimulates macrophage capability.  ^(7,8,9).

The use of tonics may prove to be of high value in their prevention. These herbs contain bitter principles and mainly increase the secretion of digestive juices, especially in the stomach via primary stimulation of the bitter receptors in the taste buds at the base of the tongue and secondary gastrin secretion, which occurs when the bitter principles reach the stomach along with the food. Immunotherapy can be used alone or combined with other cancer treatment. Immunotherapy is treatment that uses a person’s own immune system to fight cancer ⁽¹¹⁾. Immunotherapy improves immune system and destroy cancer cells ⁽¹²⁾.

ROLE OF SELECTED DRUG IN THE HERBAL CANDIES-

The plants will be selected on the basis of their medicinal applications. Selected plants are discussed here ⁽¹⁰⁾.

• Convolvulus pluricaulis– It consist of whole herb of Convolvulus pluricaulis belonging to family Convolvulaceae. Shankhpushpi having anti-stress, anti-anaxity, anti-depressive; properties are extremely useful for treating various disorders likes depression, restlessness and dementia. It increases function of brain ^(16,17).

Fig No.1-Shankhpushpi Herb

• Centella asiatica (L.) – It is the whole herb of Centella asiatica belonging to family Apiaceae. Bacoside B is a protein valued for nourishing the brain cells as a result Brahmi improves mental clarity, confidence, intelligence and memory recall. ^(17,18). Its main constituent asiaticoside possesses immunomodulatory activity, acting by increasing phagocytic index and total WBC count. In human peripheral blood mononuclear cells (PBMCs), Centella asiatica significantly increases proliferation and the production of IL-2 and TNF-α ⁽³⁰⁾.

Fig No.2-Bramhi herb

• Cyperus rotundus– It consist of dried rhizomes of Cyprus rotundus belonging to family Cyperaceae. It is used in treatment of fevers and digestive system disorders ⁽¹⁹⁾. It is also used in nausea, inflammation, for pain reduction, for muscle relaxation and for many other disorders ⁽²¹⁾. It is also used as stimulant stomachic and tonic. In India it is used extensively as a raw ingredient in perfumery, aromatherapy and soap making ⁽²⁰⁾.

Fig No.3-Nagarmotha Herb

• Swerlia Chirata– It is dried plant of Swertia Chirata belonging to family Gentianaceae. The drug having antispasmodic, antioxidant, anti-diabetic, antipyretic as well as antitussive activities. Moreover the different medicinal compounds were isolated from natural herbs effecting as anticancer, antitumor and anti-AIDS ⁽²²⁾.

Fig No.4-Chirata herb

• Spirulina– Spirulina is a blue green algae Spirulina is rich in Vit. B contents and also possess beta carotenes. Spirulina has been reported to have immunostimulant activity, used in treatment of HIV, viral infection such herpes, cytomegalovirus, influenza, mumps and Measles virus. It lowers cholesterol and used in control blood pressure. ⁽²³⁾. It is also used in weight loss. Spirulina is used against oral cancer ⁽²⁴⁾.

Fig No.5-Spirulina

MATERIALS AND METHODS

Selection of Herbs

Table-1: Herbs selected for the preparation of herbal candy are mentioned in the.

Materials-

Table-2: Materials used for making candies

PROCEDURE FOR MAKING CANDY-

• Water and sugar were mixed in a deep bottom saucepan and allowed to boil, added slight butter and salt. Stirred the mixture with a wooden spoon.
• All powders were added one by one with the help of spatula with constant stirring.
• Flavoring agent and preservative were added to the mixture.
• Content was Poured immediately into the candy mold (Sprayed with vegetable oil so that the mixture does not stick with the wall of candy mold) and allowed to cooled by placing in the cooling racks.
• After cooling stored properly at a suitable temperature ^(10,13,25)

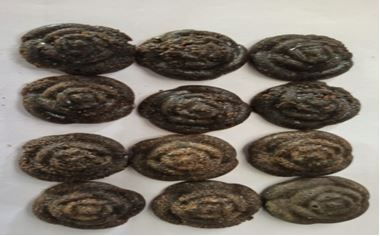

Fig.No.6-Candies

EVALUATIONS OF HERBAL CANDY

Quality Evaluation of Herbal Candy:

Sensory Evaluation of Herbal Candy:

The parameters for evaluation include appearance, colour, taste, flavour, consistency of herbal candy.

 ANALYSIS OF HERBAL CANDY

Preliminary Phytochemical Analysis

Preliminary phytochemical analysis includes the tests for the presence of carbohydrates, proteins, glycosides, tannins, polyphenols and flavonoids in the prepared herbal candy by following standard procedures. The tests followed are as follows ^(14,15).

Tests for carbohydrates

1.Tests for Carbohydrates

a) Molish’s test (General test):

To crushed candy sample, added few drops of a-naphthol solution in alcohol, shaken and added concentrated H₂SO₄ from sides of the test tube was observed for violet ring at the junction of two liquids.

b) Fehling’s test:

Crushed candy was treated with 1 ml Fehling’s A and 1ml Fehling’s B solutions mixed and boiled for one minute. Heated in boiling water bath for 5-10 min was observed for yellow, then brick red precipitate.

2. Tests for Steroids

a) Salkowski reaction:

1 gm of crushed candy was added to 2 ml chloroform and 2 ml concentrated H₂SO₄ was added.  Shake well, whether chloroform layer appeared red and acid layer showed greenish yellow fluorescence was observed.

b) Libermann – Burchard test:

1 gm of crushed candy was added to 1-2 ml acetic anhydride and 2 drops concentration H₂SO₄ from the side of test tube observed for first red, then blue and finally green colour.

3. Tests for Alkaloids

a Dragendorff’s test:

The crushed candy was treated with few drops Dragendroff’s reagent observed for orange brown precipitate.

b) Mayer’s test:

The crushed candy was treated with few drops Mayer’s reagent observed for precipitate.

c) Hager’s test:

The crushed candy was treated with Hager’s reagent observed for yellow precipitate.

 d) Wagner’s test:

The crushed candy was treated with few drops of Wagner’s reagent observed reddish brown precipitate.

4. Tests for Flavonoids

a) Shinoda test:

To powder candy, added 5 ml 95% ethanol, few drops concentrated HCl and 0.5 g magnesium turnings. Pink colour was observed.

To small quantity of residue, added lead acetate solution observed for Yellow coloured precipitate. Addition of increasing amount of sodium hydroxide to the residue whether showed yellow colouration, which was decolourised after addition of acid was observed.

b) Ferric chloride test:

To powder candy, added few drops of ferric chloride solution observed for intense green colour.

5. Tests for polyphenols

a) Ferric chloride test:

1 gm of crushed candy was treated with 5% freshly prepared ferric chloride solution; deep blue colour came out ⁽²⁶⁾.

Fig.No.7- Preliminary Phytochemical Test

RESULTS AND DISCUSSION:

Cancer is treated by surgery, radiation therapy, chemotherapy, targeted therapy, Hormone therapy, Stem cell transplant, precision medicine and Immunotherapy to treat cancer⁽²⁷⁾.Immunotherapy is a type of cancer treatment that helps your immune system fight cancer.  The basic function of the immune system is to protect the individual against infectious agents and potential pathogens which puts the immune system in vital position between a healthy and diseased state of a host. Sensory evaluation revealed that polyherbal candies were brown in colour, sweet in taste, pleasant in odour with solid consistency. Phytochemical investigation of polyherbal candy showed the presence of Carbohydrates, alkaloids, flavonoids, terpenoids and polyphenols. The study was conducted to annotate the immunomodulatory potential of Indian medicinal plants. Results from this study showed that the polyherbal candy contain potential compounds that can initiate the production of antibodies in an immunosuppressed animal. Literature review explain the common usage of each individual herb as an immune stimulant and anticancer in the traditional medicine. Candy is a fast and effective delivery system for medications. Hard boiled sugar candy was developed by using powder of Shankhpushpi, Brahmi, Nagarmotha, Chirata and Spirulina. The results of physio-chemical and sensory characteristics of herbal candy revealed that candy prepared using sugar. The temperature at 145ºC produced best consistency, mouldability, thread forming ability, brittleness along with desirable taste and colour. Further studies may be required to for rendering the combine immunostimulatory impacts.

Herbal tonic candy formulation was subjected to various analytical techniques ⁽¹⁵⁾.

• Sensory evaluation parameters revealed that brown in colour, with a sweet in taste.

Table-3: Evaluation Test of candy

• Phytochemical tests of herbal candy were determined and results were tabulated^.

Table-4: Phytochemical Test

CONCLUSION

The use of various plant specific dose during the scheduled regimen may be helpful in obtaining higher protective antibody against different infections including production and development of more effective cell mediate immune response for protection against various types of cancer. Herbal formulation may be therefore recommended for use as positive immunomodulator. Literature reveals that many of the Phyto-chemicals in the form of alkaloids, flavonoids, terpenoids, polysaccharides, lactones and glycoside products are responsible to cause alterations in the immunomodulatory properties ^(28,29). There are several botanical products with potential therapeutic applications because of their high efficacy, low cost and low toxicity. This will may help to new discovery and drug development.

 REFERENCE

1. “Cancer” World Health Organization. 12 September 2018. Retrieved 19 December 2018.
2. Avni G. Desai and et-al Medicinal Plants and Cancer Chemoprevention NIH Public Access Author Manuscript Curr Drug Metab. Author manuscript; available in PMC 2014 September 11.
3. Namrata Singh and et-al A Review on herbal plants as immunomodulators IJPSR (2016), Vol. 7(9): 3602-3610.
4. R. P, Melzer J, Saller, An approach to the concept of tonic, Complementary medicine research.2014.
5. Michele nadaletti, Macrodi, Luccio, Alexandre Jose, Journals of food process engineering, 2011.
6. The Ayurvedic Pharmacopoeia of India, Part 1. 1st ed. Govt. of India; Ministry of Health and Family Welfare; 2001.
7. Reference book of medicinal herbs by, M. P. Singh, Himari panda, volume-I and II, Page No.236, 338.
8. Pubmed.com
9. sciencedirect.com
10. Reena hood, Formulation development of a herbal candy for altitude of health problems, Journal of pharmacognosy and phytochemistry, 2015.
11. cancer.org.
12. cancer.net
13. Preeti Shulka, Development of herbal candy using ginger essential oil, Postharvest technology,2018.
14. Durrani, Development and quality evaluation of honey based soft candies, Journal of food science technology, 2011.
15. Chauhan DK, Puranik V, Rai GK. Development of functional herbal beverage. Open Access Scientific Reports,2012.
16. Neeraj K. Sethiya, Ashish Trivedi, Mayur B. Patel, and S. H. Mishra, Comparative pharmacognostical investigation on four ethanobotanicals traditionally used as Shankhpushpi in India,Journal of advanced pharmaceutical technology and research,2010.
17. Neeraj K.Sethiya, AlokNahata, Pawan Kumar Singh, H. Mishra, Neuropharmacological evaluation on four traditional herbs used as nervine tonic and commonly available as Shankhpushpiin India, Journal of Ayurveda and integrative medicine,2017
18. Reference book of, Text book of Pharmacognosy by, Mohammed Ali.
19. Honey Jain, Neha Batra, A Review on pharmacognosy of Cyperusspecies, Journal ofPharmatutor,2008.
20. Reference book of, Pharmacognosy and phytochemistry by, Kokate, C.K A and Purohit, A.P.
21. Puratchikody A, Devi CN, Nagalakshmi G. Wound healing activity of Cyperus rotundus Indian J Pharm Sci, 2006.
22. Vijay Kuma, A Review of Swertia chirayita(Gentianaceae) as a Traditional Medicinal Plant, Journal of Frontires in pharmacology,2016.
23. Joe Leech, health benefit of spirulina, 2018.
24. Dillon JC, Phuc AP, Dubacq JP. Nutritional value of the alga Spirulina. World Review of Nutrition and Dietetics.
25. Pandey L, Devlopement of herbal candy, Ph d thesis G.B pant univ of ag.and technology, 2006.
26. Practical Pharmacognosy by Dr. K. R. Khandelwal, Dr. Vrunda sethi Nirali prakashan, 27^th
27. Types of Cancer Treatment – National Cancer Institute.
28. Hasson SS, et al., Immunomodulatory Potential of Combining Some Traditional Medicinal Plants In Vivo Annals of Microbiology and Immunology 2019 | Volume 2 | Issue 1 | Article 1014 1-8.
29. Preeti Sharma and et-al Immunomodulators: Role of medicinal plants in immune system National Journal of Physiology, Pharmacy and Pharmacology 2017 | Vol 7 | Issue 6 552-556.
30. Pulok K Mukherjee and et-al Immunomodulatory leads from medicinal plants INDIAN J TRADITIONAL KNOWLEDGE, VOL. 13, NO. 2, APRIL 2014 pp. 235-256.
